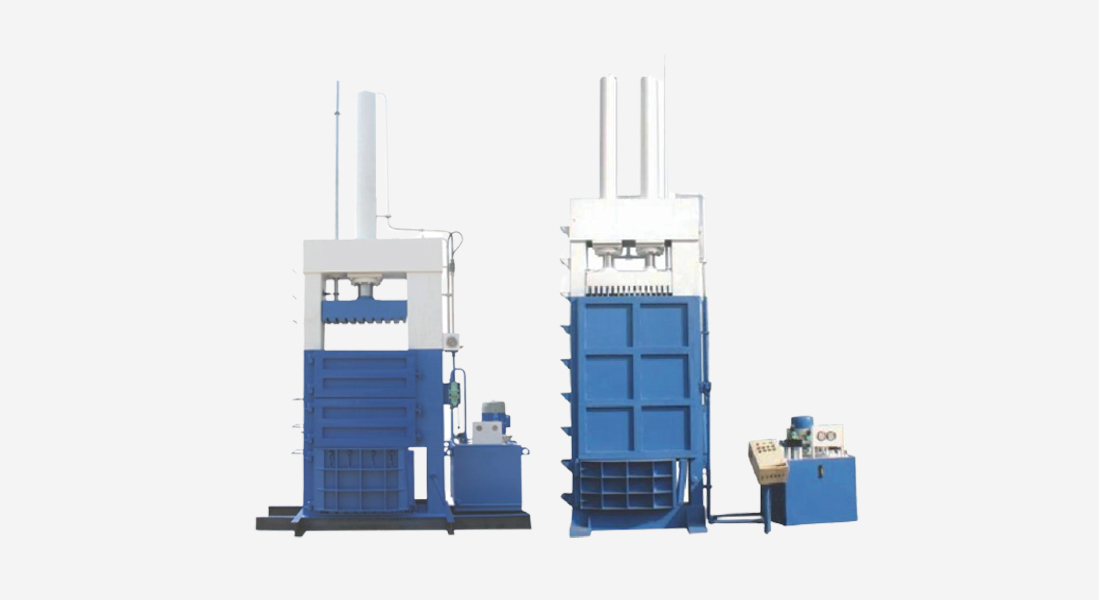

Vertical Baling Press

Applications :

- Paper, plastic, pet, OCC, cotton, coir, tyre, fabric, rubber, foam etc

Types :

- Single cylinder vertical baler
- Double cylinder vertical baler
- Single box baler
- Double box baler

Vertical Baling press are loaded from the front and compress from the top down.
The strapping by manual, the finalized bale is then ejected automatically from the baler.
Our vertical baling press has the capacity of processing 4-8tons per shift

Features :

- Operation through push button
- Power efficient
- Heavy & Robust structure
- Automatic Ejection
- No requirement of civil foundation

Specification: (approx.)

Model	ISV - 12	ISV - 20	ISV - 30	ISV - 40	ISV - 50
Bale weight	25-40kg	40-60kg	60-80kg	100-150kg	150-200kg
Bale size Length	600mm	600mm	800mm	1100mm	1100mm
Width	400mm	400mm	600mm	760mm	760mm
Height	200-500mm	200-500mm	400-700mm	500-750mm	600-900mm
Chamber Size Length	600mm	600mm	800mm	1100mm	1100mm
Width	400mm	400mm	600mm	760mm	760mm
Height	900mm	900mm	1400mm	1500mm	1800mm
Feed Opening Length	600mm	600mm	800mm	1100mm	1100mm
Width	400mm	400mm	500mm	600mm	600mm
Cylinder Bore dia	100mm	125mm	150mm	160mm	180mm
Motor Power	3 HP	5 HP	7.5 HP	10 HP	15 HP
Cycle Time ( Unloaded )	23-28 sec	40-45 sec	40-45 sec	40-45- sec	40-45 sec
No.of Tying	4 Nos	4 Nos	5 Nos	6 Nos	6 Nos
Overall Size Length	1050mm	1050mm	1200mm	1500mm	1500mm
Width	750mm	750mm	1000mm	1100mm	1100mm
Height	2300mm	2300mm	3100mm	3900mm	4200mm
OIl Tank Capacity	50L	75L	100L	140L	180L
Controls	Electric Control Panel
